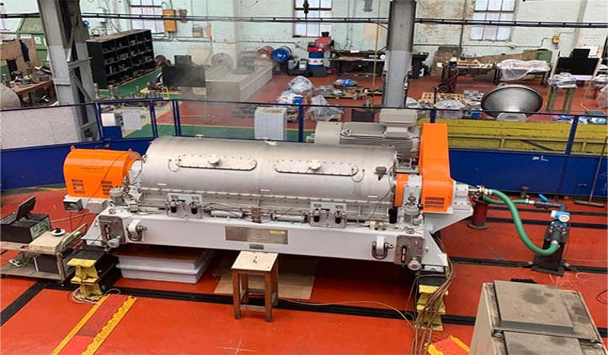

Description
Feed slurry is introduced into the bowl through the centre of the conveyor where the solids settle through the liquor pool formed in the bowl. The gearbox produces a slight differential speed between the rotation of the bowl and that of the screw conveyor which conveys the solids along the bowl wall, out of the liquor pool, and up the conical section of the bowl to the solids discharge ports. The clarified liquor (centrate) discharges continuously from the opposite end of the bowl over adjustable weir ports.
Industries Served
POLYMERS AND ORGANIC CHEMICALS
- PVC (Homopolymer and Copolymer)
- HDPE
- UHMWPE
- Bisphenol A
- Paraxylene
- Melamine
- Organic intermediates and final products
INORGANIC CHEMICALS
- Titanium Dioxide
- Copperas (Iron (II) Sulphate)
- Fertilizers

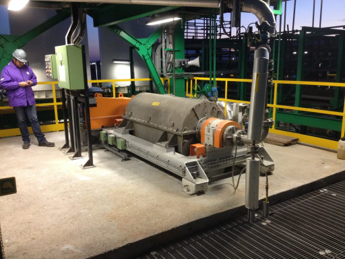

Application
Benefits of solid bowl Decanter
Feed slurry 1 - 45% solids w/w.
Discharged solids 5 - 70% liquid w/w.
Solids recovery 60% - 99.99% w/w.
Throughputs 3 - 200 m3/hr.
Solids output 0.2 - 100 tonnes/hr.
Feed particle size - 10 to approx 1000µm.
Bowl speed 500 - 3500 rpm.
Power consumption 25 - 500 kw.
Feed temperature -69°C to 200°C.
Case pressure - vacuum to 10 barg.
Technical Performance Highlights
Feed Slurry
1 - 45%
Solids w/w
Throughput
3 - 200
m3/hr
Bowl Speed
500 - 3500
rpm
Power Consumption
25 - 500
kw
Feed Temperature
-69°C to 200°C
Need Technical Consultation?
Our engineering team can help identify the most suitable Broadbent Solid Bowl Decanter solution for your process requirements.
